Bypass barn door hardware allows two or more doors to overlap as they move. This makes it useful for closets, laundry areas, pantries and wide interior openings where there is not enough clear wall space for every door to slide completely away from the opening.
Choosing the correct system requires more than counting the doors. Single-track, double-track and triple-track bypass hardware use different track arrangements and can have different requirements for door overlap, vertical clearance, wall projection and handle placement.
This guide explains how the three systems differ and what to measure before ordering. To compare available products, browse the Homacer Bypass Barn Door Hardware Collection.
Bypass Barn Door Hardware at a Glance
| System | Typical configuration | How the doors move | Main point to check |
| Single-track bypass | Commonly two overlapping doors | Doors share one main rail using an offset hanger arrangement | Door overlap, movement pattern and available vertical clearance |
| Double-track bypass | Two or more doors on parallel tracks | Doors travel on separate front and rear tracks | Overhead clearance, total system depth and spacing between doors |
| Triple-track bypass | Normally three doors on three parallel tracks | Each door follows its own track | Larger vertical clearance, total projection, door order and handle placement |
This table is a starting point only. Track construction, door quantity, thickness range, weight capacity and included components vary by product. Always review the selected product page and installation instructions before ordering.
What Is Bypass Barn Door Hardware System?
A standard non-bypass barn door kit moves along a track without passing in front of or behind another door. To expose the complete opening, it generally needs enough clear wall space for the door to slide away from the doorway.
A bypass system allows multiple door panels to occupy overlapping positions. Instead of requiring every door to move onto a separate section of side wall, the doors can stack or pass along front and rear paths.
This arrangement can reduce the amount of adjacent wall space needed for a wide opening. However, bypass doors normally provide access to one portion of the opening at a time because one or more panels remain in front of part of the doorway.
Before choosing bypass hardware, consider which section of the closet, appliance area or storage opening needs to remain easiest to reach.

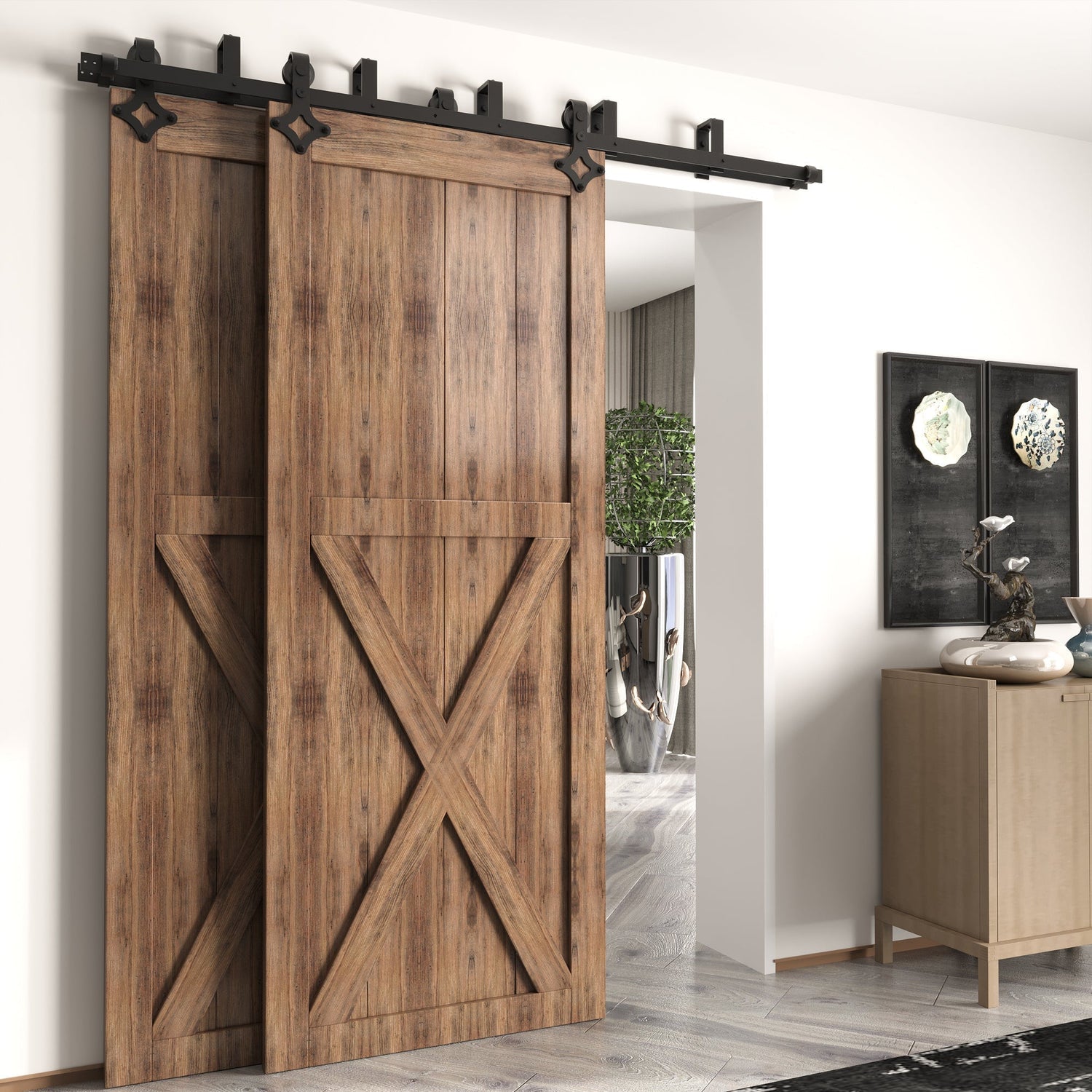

Single-Track Bypass Barn Door Hardware
A single-track bypass system places overlapping doors on one shared main rail. An offset hanger arrangement positions the panels so one door can move in front of the other.
This creates a more compact overhead arrangement than a conventional double-track system.
Single-track bypass hardware may be suitable when:
- Two doors need to cover a wider opening
- Available wall space is limited
- The room has less vertical clearance above the doors
- A compact track profile is preferred
- The intended door sizes and overlap match the selected kit
- The required access pattern works with overlapping doors
Because the doors share one main rail, their movement is not the same as two doors running independently on separate parallel tracks. Check the selected product’s door arrangement and installation diagram to understand which panel moves and how far it can travel.
Single-Track Door Width and Overlap
Door overlap is essential. If the doors are too narrow, part of the opening may remain visible when the system is closed.
As a general reference, the Homacer Track Size Calculator uses the following minimum door-width calculation for a standard single-track bypass layout:
Minimum width of each door = (finished opening width + 6.25 inches of overlap) ÷ 2
This is a general calculator reference, not a universal formula for every product or custom installation. Door placement, hanger offset and product construction can change the required overlap.
Use the Homacer Barn Door Track Size Calculator, then verify the result against the selected hardware kit.
Explore Single-Track Bypass Barn Door Hardware
Double-Track Bypass Barn Door Hardware
Double-track bypass hardware positions the doors on two parallel tracks. The front and rear doors have separate sliding paths, providing more space between the panels than a single-track arrangement.
With two barn doors, bypass hardware can create the balanced appearance of double doors across a wide opening. Unlike center-opening non-bypass doors, however, the panels move on overlapping paths. This arrangement can support the interior design of a closet, pantry or room divider without requiring both doors to slide completely away from the opening.
Double-track hardware may be suitable when:
- You want the doors to move on separate tracks
- The door thickness or handle arrangement needs greater panel separation
- There is enough vertical space above the doors
- The room can accommodate the additional projection from the wall
- You need configurations using two or more doors
- Independent door movement is important for accessing different parts of the opening
Because the second track extends farther into the room, measure the total hardware depth. Check nearby furniture, hallway width, cabinets, appliance doors and other objects that could interfere with the front door.
Double-track products may use different bracket designs and mounting arrangements. Selected Homacer options also include ceiling-mounted double-track bypass hardware. Confirm the mounting method before ordering rather than assuming every double-track kit attaches to the wall in the same way.
Explore Double-Track Bypass Barn Door Hardware
Triple-Track Bypass Barn Door Hardware
Triple-track bypass hardware is designed primarily for three-door installations. Each door travels along one of three parallel tracks, allowing the panels to overlap across a wide opening.
It can be considered for:
- Large closet openings
- Wide laundry or storage areas
- Three-panel interior openings
- Openings that cannot provide enough side wall for all three doors
- Layouts requiring access to different parts of a wide opening
A triple-track system requires more planning than a single- or double-track system.
Before choosing one, check:
- Finished opening width
- Width and thickness of all three doors
- Required overlap
- Track length
- Vertical clearance
- Total projection from the wall
- Order of the front, center and rear doors
- Handle and recessed-pull placement
- Floor-guide arrangement
- Structural mounting support
Homacer’s calculator indicates that triple-track systems normally require at least 10 inches of vertical clearance. Treat this only as an initial screening measurement. The selected hardware kit and roller design determine the final requirement.
Explore Triple-Track Bypass Barn Door Hardware
Single Track vs Double Track vs Triple Track
The correct system depends on the number of doors, available space and how you want the panels to move.
Choose Single-Track Bypass When:
- You want a compact bypass arrangement
- Available vertical clearance is limited
- The planned door overlap matches the kit
- The shared-rail movement pattern provides the access you need
Choose Double-Track Bypass When:
- You want separate front and rear tracks
- The doors need more space between them
- Handles or door thickness require additional separation
- You have adequate overhead clearance and room depth
- Independent door movement is important
Choose Triple-Track Bypass When:
- You are planning a three-door system
- The opening is especially wide
- Multiple panels must overlap without using extensive side-wall space
- The wall and room can accommodate the greater depth and clearance requirements
The number of tracks is only one part of the decision. Door movement, available clearance and the desired access pattern are equally important. A single-track arrangement is not automatically best for every small space, and a triple-track arrangement is not automatically best for every wide opening.
How Much Vertical Clearance Do You Need?
Vertical clearance is the space between the top of the door and the ceiling. It must accommodate the roller, hanger, track and any bypass brackets used by the system.
As an initial planning reference, the Homacer calculator uses these general guidelines:
- Under 8 inches of vertical clearance usually points toward single-track bypass
- 8 inches or more may accommodate double-track bypass
- Triple-track systems normally require at least 10 inches
- Some roller styles, including selected spoke-wheel designs, may require additional space
These are not universal installation specifications. Roller design, door height, bracket type, mounting position and ceiling details can change the requirement.
Measure from the top edge of the actual door to the ceiling and compare that measurement with the specifications for the exact kit.
Measure Before Choosing a Bypass System
Accurate measurements help prevent ordering doors that do not cover the opening, hardware that cannot fit above the doors or a track that does not provide the required travel.
Record the following measurements.
Finished Opening Width
Measure the finished doorway or closet opening from inside edge to inside edge. Use the finished opening measurement rather than the rough opening.
Take measurements at more than one height if the opening may not be square.
Finished Opening Height
Measure from the finished floor to the top of the finished opening. Account for any trim or casing that will remain in place.
Actual Door Width and Height
Use the actual dimensions of every door. Measure each door individually, especially when using an existing set of panels.
Each panel must be wide enough to produce the required coverage and overlap when the system is closed.
Vertical Clearance
Measure from the planned top edge of the door to the ceiling. Compare the available space with the exact roller and bracket requirements.
Available Side-Wall Space
Measure the clear wall area beside the opening. Although bypass systems reduce the side-wall space required for multiple doors, the panels still need sufficient room to travel.
Check for:
- Light switches
- Electrical outlets
- Windows
- Wall vents
- Shelving
- Cabinets
- Artwork
- Baseboards
- Furniture
Total System Depth
Double- and triple-track hardware extends farther from the wall than a standard single-track installation.
Measure the room depth available in front of the opening and confirm that the hardware and doors will not obstruct a walkway or contact nearby furniture.
Sliding Barn Door Weight, Load Capacity and Heavy Doors
Confirm the actual thickness and weight of every door before selecting the hardware. A heavy door must remain within the published load capacity and supported door-thickness range for the selected kit.
Do not assume that every single-, double- or triple-track system supports the same weight ranges. Check whether the listed capacity applies:
- Per door
- To all doors combined
- To a specific roller
- To a particular track or bracket configuration
A weight rating assumes correct installation into suitable structural support. It does not make drywall alone an acceptable mounting surface.
How Long Should a Bypass Barn Door Track Be?
Bypass track length depends on:
- Finished opening width
- Number of doors
- Width of each door
- Required overlap
- Track arrangement
- Desired door travel
- Available side-wall space
Because single-, double- and triple-track bypass systems use different door-and-track relationships, use the calculation for the selected configuration.
Use the Barn Door Track Size Calculator to estimate the required track length. Select the correct door count and track type, then verify the result against the selected product page.
If the calculated length falls between available standard sizes, the tool generally recommends the next suitable standard size. Custom track cutting is also available for eligible Homacer hardware; confirm availability for the selected product before ordering.
Check Handles and Door Spacing
Handle placement is especially important in a bypass installation because the doors move close to one another.
A projecting handle placed on the wrong surface can contact:
- Another door
- The wall
- Door trim
- A bypass bracket
- A stopper
- Nearby furniture
A common arrangement uses a projecting pull on the accessible front face and a recessed pull where one door must pass close to another panel. The correct arrangement depends on the direction of travel and the order of the doors.
Plan every handle position before drilling the doors.
Floor Guides and Door Alignment
Floor guides help keep the doors aligned and reduce side-to-side movement.
Bypass systems may require different guide arrangements depending on the number of doors, track spacing and panel order. Use the floor-guide arrangement specified for the selected bypass system.
Before installation:
- Confirm the guide supplied or recommended for the kit
- Check the spacing between the door panels
- Confirm whether the door requires a bottom groove
- Make sure the guide will not interfere with flooring or thresholds
- Follow the installation diagram for the selected configuration
Wall Mount or Ceiling Mount?
Most bypass systems are mounted to suitable structural support above the opening. Selected Homacer double-track bypass kits are also available with ceiling-mount hardware.
A wall-mounted system must be secured to suitable studs, blocking or a properly supported header board. Drywall alone is not sufficient.
A ceiling-mounted system must be secured to appropriate ceiling joists, blocking or another suitable structural support. The finished ceiling surface by itself does not establish that the structure can support the doors.
Choose a mounting method that works with both the room design and the available structural support.
For a detailed comparison, read Ceiling Mount vs Wall Mount Barn Door Hardware.
Hardware Only or a Bypass Combo Kit?
Confirm whether you need hardware only or doors and hardware together.
| Purchase option | Barn doors | Bypass hardware | Door assembly status |
| Bypass hardware kit | Not included | Included as specified on the product page | Not applicable |
| Bypass barn door combo kit | Included | Included as specified on the product page | Doors ship unassembled |
| Barn doors only | Included | Not included | Doors ship unassembled |
A hardware-only kit may be suitable if you already have compatible doors. You must verify their thickness, weight, construction and drilling requirements.
A bypass combo kit includes the selected unassembled doors together with compatible bypass hardware for that product configuration. The exact accessories and optional features still vary by product.
Explore Homacer Bypass Barn Door Combo Kits
Hardware Finish and Roller Options
Selected Homacer bypass hardware is available in Black Rustic and Brushed Nickel finishes.
Available roller designs depend on the track system. A roller offered with a double-track product may not be available or compatible with a single- or triple-track kit.
Choose in this order:
- Track configuration
- Door count
- Door dimensions and weight
- Mounting method
- Required track length
- Vertical and room clearance
- Compatible roller design
- Hardware finish
After the functional requirements are confirmed, choose a compatible roller design and finish that complements the room’s interior design.
This prevents choosing a preferred roller appearance that does not work with the required track system.
Soft-Close Compatibility
A compatible soft-close mechanism can control the final portion of the door’s movement, but soft-close availability varies by product and configuration.
Before adding soft-close, confirm:
- Compatibility with the selected bypass track
- Number of mechanisms needed
- Door-weight requirements
- Activation distance
- Available space on the track
- Whether the mechanism is included or sold separately
- Which door movements the mechanism controls
Please note that soft-close components may vary by Homacer bypass kit, so we recommend checking the product details to confirm what is included and supported.
Bypass Hardware for Closets
Closets are a common use for bypass doors because the opening may be wide while the adjacent wall is limited.
However, bypass doors generally leave one section of the closet covered by an overlapping panel. Consider how the closet is organized before choosing the door arrangement.
For example:
- Frequently used clothing may need to remain behind the easiest-to-open section
- Drawers must have enough clearance to open
- Interior shelves should not interfere with floor guides
- Door handles should not block panel movement
- The selected system should provide suitable access to both sides
If access to most of the opening at the same time is more important than keeping the panels flat, compare bypass with a folding system in Bi-Fold vs Bypass Barn Door Hardware for Closets.
Bypass Hardware for Laundry Rooms and Pantries
Bypass hardware can work for wide laundry closets and pantry openings where a conventional pair of sliding doors would require too much side-wall space.
Check that the doors will not interfere with:
- Washer or dryer controls
- Appliance doors
- Hoses and service access
- Pantry drawers
- Pull-out shelves
- Cabinet doors
- Countertops
- Nearby walkways
Determine whether you need access to the complete opening or only one section at a time. A bypass system may be practical when partial access is acceptable.
What Supports Smooth, Quiet Operation?
Smooth operation depends on the complete installation rather than one roller or track component.
Check that:
- The mounting structure is appropriate
- The track and brackets are level
- Track joints are correctly aligned
- All rollers match the selected system
- Door weight and thickness remain within the product specifications
- The doors maintain the required spacing
- Handles do not contact another panel
- Floor guides are correctly positioned
- Stoppers and anti-jump components are installed as directed
- Mounting bolts remain secure
If a door becomes difficult to move, inspect track alignment, joints, panel spacing, handle clearance and floor-guide position before replacing components.
Final Checklist Before Ordering
Confirm all of the following:
- Finished opening width and height
- Number of doors
- Actual width and height of each door
- Door thickness
- Weight of each door
- Required door overlap
- Available side-wall space
- Vertical clearance
- Total system depth
- Track length
- Wall or ceiling structural support
- Trim and baseboard clearance
- Handle and recessed-pull placement
- Floor-guide compatibility
- Soft-close compatibility, if required
- Components included with the selected product
If one of these requirements is uncertain, contact Homacer before ordering.
Browse All Bypass Barn Door Hardware Kits
Frequently Asked Questions
What is the difference between single-track and double-track bypass hardware?
Single-track bypass hardware places overlapping doors on one shared main rail using an offset hanger arrangement. Double-track bypass hardware places the doors on separate parallel tracks. Double-track systems generally provide greater panel separation but require more overhead space and project farther into the room.
Does a single-track bypass system use only one track?
It uses one shared main rail, but additional offset hanger components position the doors so they can overlap. Review the selected product diagram because the exact movement and hanger arrangement vary by kit.
Can both bypass doors move?
Door movement depends on the selected system. Double-track doors normally travel on separate tracks. A single-track system uses a shared rail and has a different movement arrangement. Confirm which panels move and their available travel on the individual product page.
How much vertical clearance does bypass hardware require?
The requirement depends on the track system and roller design. As an initial guide, under 8 inches may point toward single-track bypass, while 8 inches or more may accommodate double-track hardware. Triple-track systems normally require at least 10 inches. Always confirm the exact product specification.
How long should a bypass barn door track be?
Track length depends on opening width, door width, overlap, number of doors, system type and desired travel. Bypass systems should not automatically use the standard non-bypass track formula. Use the Homacer Track Size Calculator and verify the result against the selected kit.
How many inches should bypass barn doors overlap?
The required overlap depends on the hardware system. For a standard single-track bypass layout, Homacer’s Track Size Calculator uses 6.25 inches of overlap, with a minimum width for each door of (opening width + 6.25 inches) ÷ 2. Double- and triple-track systems may use different overlap requirements. Use the measurements specified for your selected kit so the doors cover the opening when closed.
Do bypass barn doors need a bottom track?
Most top-hung bypass barn doors use small floor guides rather than a continuous bottom track across the opening. The overhead hardware supports the doors, while the guides help keep the panels aligned and reduce swinging. The guide type and placement depend on the number of doors and the spacing between them, so follow the guide arrangement shown in your kit’s installation instructions.
Does bypass hardware provide full access to the opening?
Not usually. Because the doors overlap, one or more panels generally remain in front of part of the opening. The accessible area changes as the doors move.
Can bypass barn door hardware be attached directly to drywall?
No. Wall-mounted bypass hardware must be secured to suitable studs, blocking or a properly supported header board. Ceiling-mounted systems require appropriate ceiling joists, blocking or another suitable structural support. Drywall alone is not sufficient.
Does a bypass barn door hardware kit include the doors?
A hardware-only kit does not include barn doors. A bypass barn door combo kit includes unassembled doors and the compatible hardware specified on that product page.
Does every bypass kit include soft-close?
No. Soft-close availability, inclusion and compatibility vary by product. Check the selected product page before ordering or adding a separate mechanism.
Can I use different door thicknesses in one bypass system?
Only if every door meets the selected kit’s thickness requirements and the hanger fit, panel spacing, bracket clearance, floor-guide arrangement and handle clearance remain compatible. Because many systems are designed around matching door thicknesses, review the exact product specifications or contact Homacer before combining doors of different thicknesses.
Choose the System Before the Style
Begin with the number of doors and the way they need to move. Then check the opening, overlap, vertical clearance, track length, system depth and mounting structure.
Once those functional requirements are confirmed, compare compatible roller designs and finishes within the correct product group.
Browse Homacer Bypass Barn Door Hardware, or use the Barn Door Track Size Calculator before making your final selection.
