Barn Door Track Size Calculator
Use Homacer barn door track size calculator to find the right hardware track length for your opening. Enter your door configuration, track type, opening width, door width, and clearance to get a recommended standard track size.
This tool supports one door, two doors, three doors, non-bypass sliding kits, single track bypass, double track bypass, triple track bypass, and ceiling mount kits.
After calculating your recommended size, you can shop matching barn door hardware filtered by track length, hardware type, and door configuration.
Barn door hardware guide
How to Select the Right Track Size
Enter your opening, door width, clearance, and system type to find the recommended barn door track length.
1
Enter Your Measurements
Track Measurement Tips
- Opening width: Measure the finished opening from inside edge to inside edge.
- Vertical clearance: Measure from the top edge of the door panel to the ceilling.
- Door width: Enter the actual width of each door.
- Available wall space: Confirm that the recommended track will fit beside and above the opening.
2
Track Length Formula
Tip:

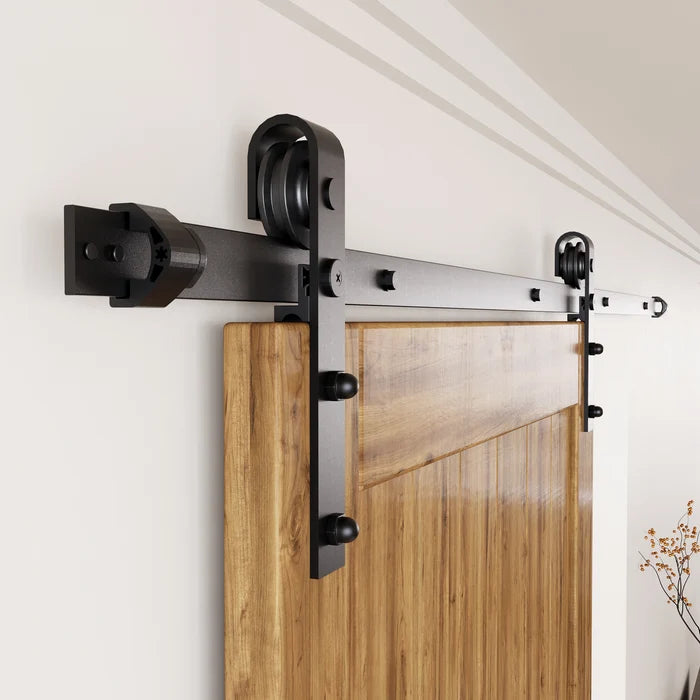

Non-bypass kits: Track = Total door width x 2 + 2”.

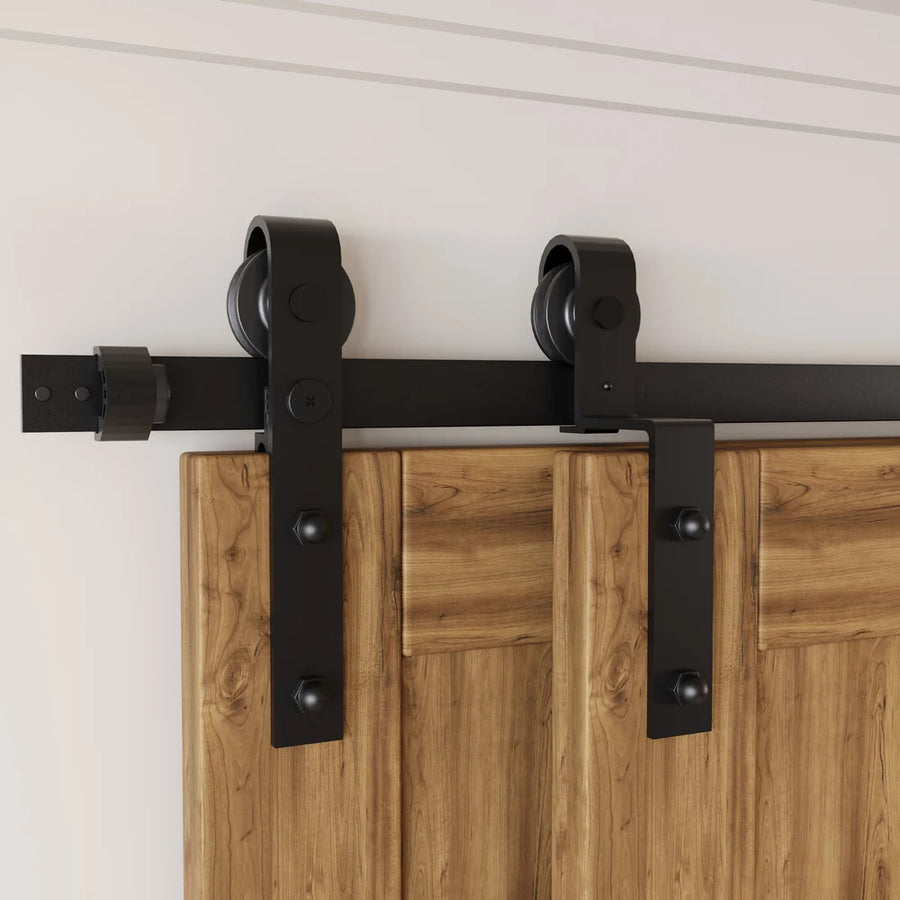

Single track bypass door width: (opening width + 6.25” overlap) / 2 minimum.

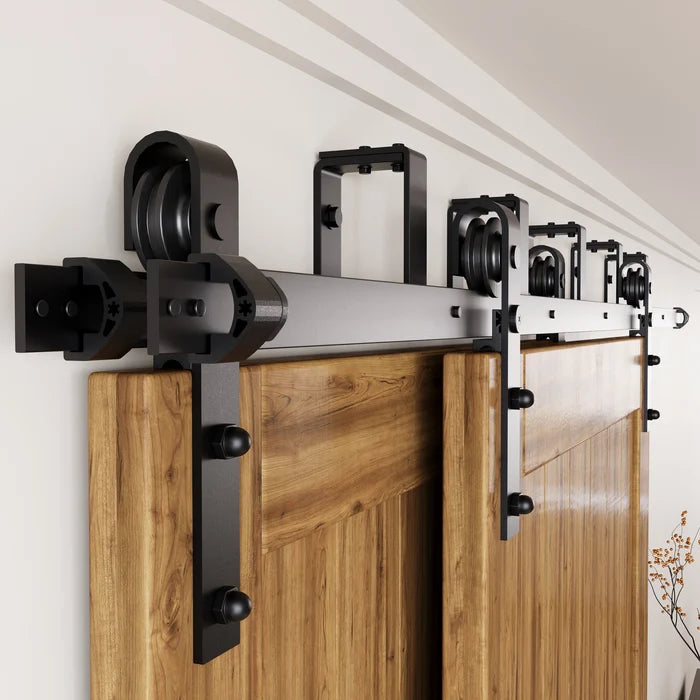

Bypass Clearance guide: Under 8” usually uses single track bypass; 8” or more can use double track bypass.

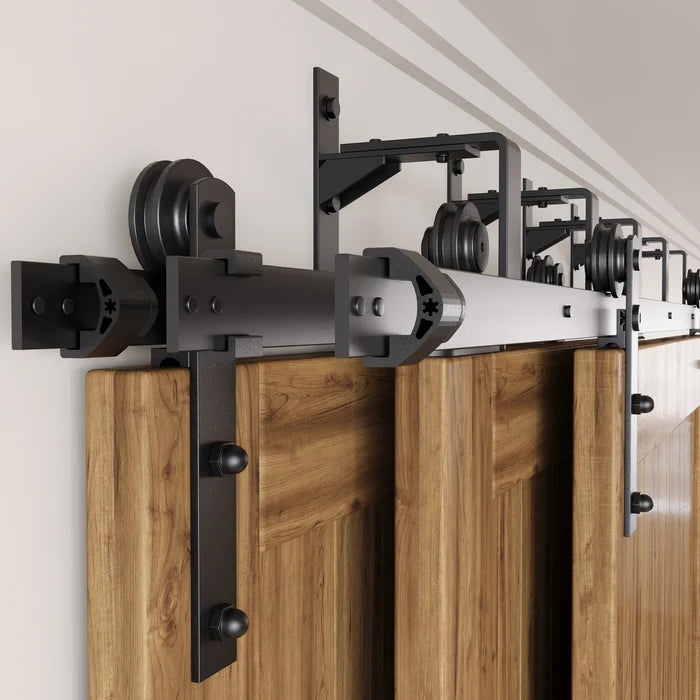

Triple track bypass systems:
Normally require at least 10 inches of vertical clearance. Always verify the requirements of the selected hardware kit.

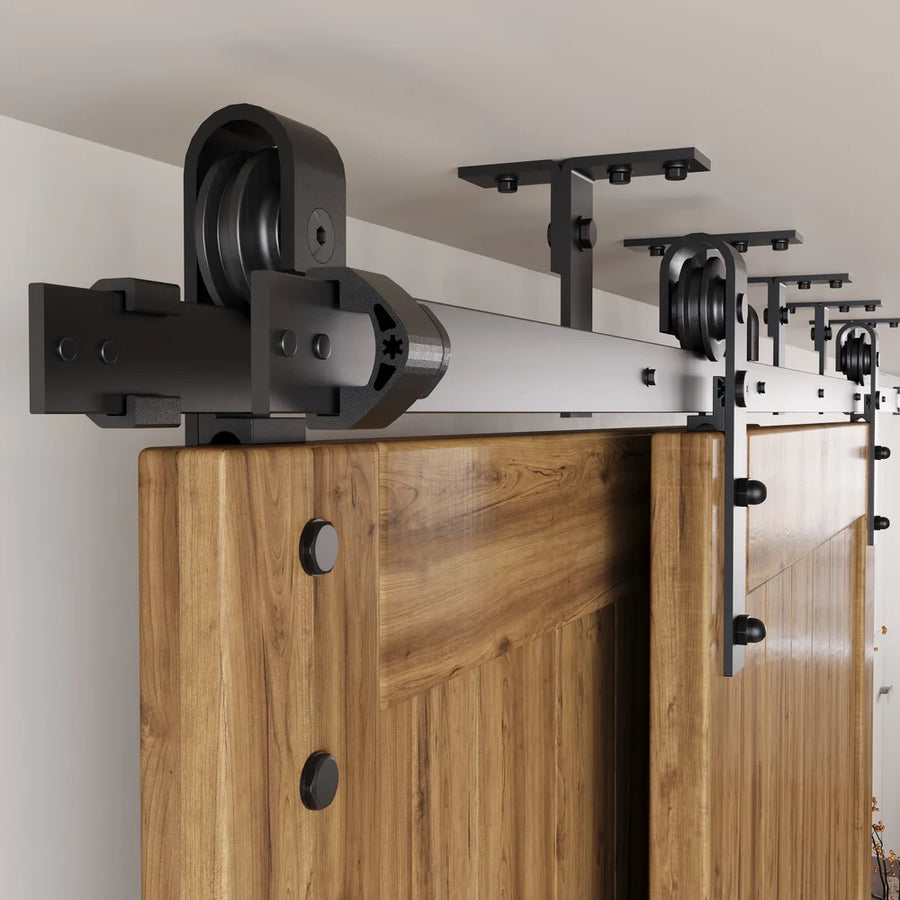

Ceiling mount kits: These systems do not require a wall-mounted header area, but they still need at least 6 1/8 inches of vertical space from the top of the door to the ceiling for the ceiling bracket and roller assembly.
Spoke wheel: May require more vertical clearance than standard roller designs. Check the selected product specifications before ordering.
3
Make Your Final Selection
Required track
-- --Recommended standard size
-- Select the next larger available size.4ft - 8ft48", 54", 60", 66", 72", 79", 84", 90", 96"
8ft - 16ft1ft increments
18ft - 20ft2ft increments
Disclaimer: This calculator is provided as a general reference to help estimate barn door track size. Because hardware systems, wall conditions, clearance, and installation details can vary, the result may not apply to every project. If you are unsure about your measurements or receive an inconclusive result, we recommend contacting us before ordering.
