Non-Bypass Sliding Barn Door Hardware Kit - Diamond Design Roller

Sale price$79.00

Track Length: 4ft
Door Type: One Door Kit

All orders are free shipping within the United States (except for Hawaii and Alaska). All orders will be shipped out from our Georgia warehouse within 1 to 2 business days via FedEx or USPS.


Roller Set Box

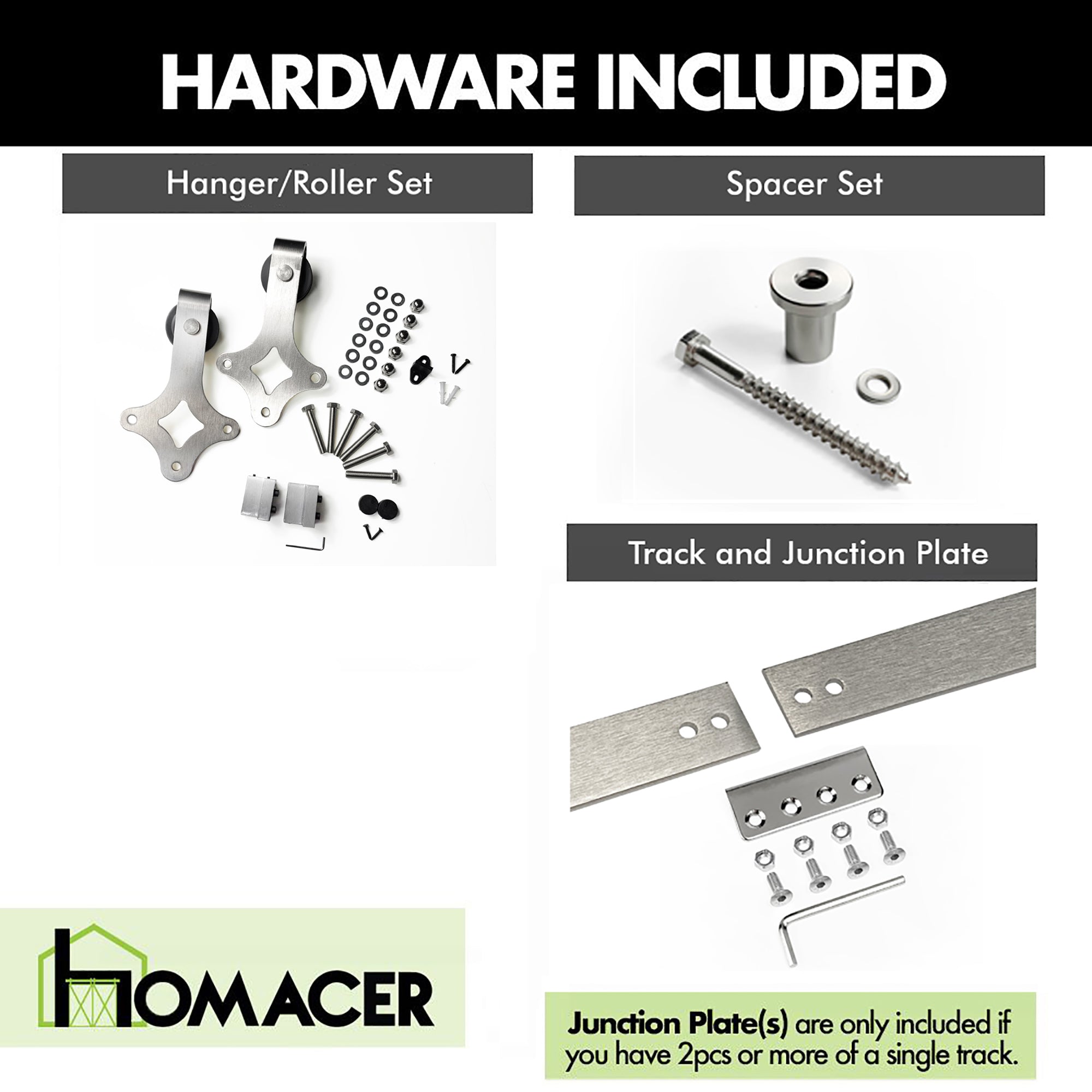

Box contains: Rollers, Hex Bolts, Floor Guides, Anti-Jump Pads, and Door Stoppers

Track & Junction Plate

Track(s) & Junction Plate(s) quantity depends on the size ordered.

Parts Introduction

Here is more info on what each part of the hardware does.

Parts Check List


Heavy duty and made of steel, the track, or sometimes called rail, mounts above the door opening. It's what the door will hang from and where the door will slide back and forth on. The track should be mounted into the studs to have maximum stability.

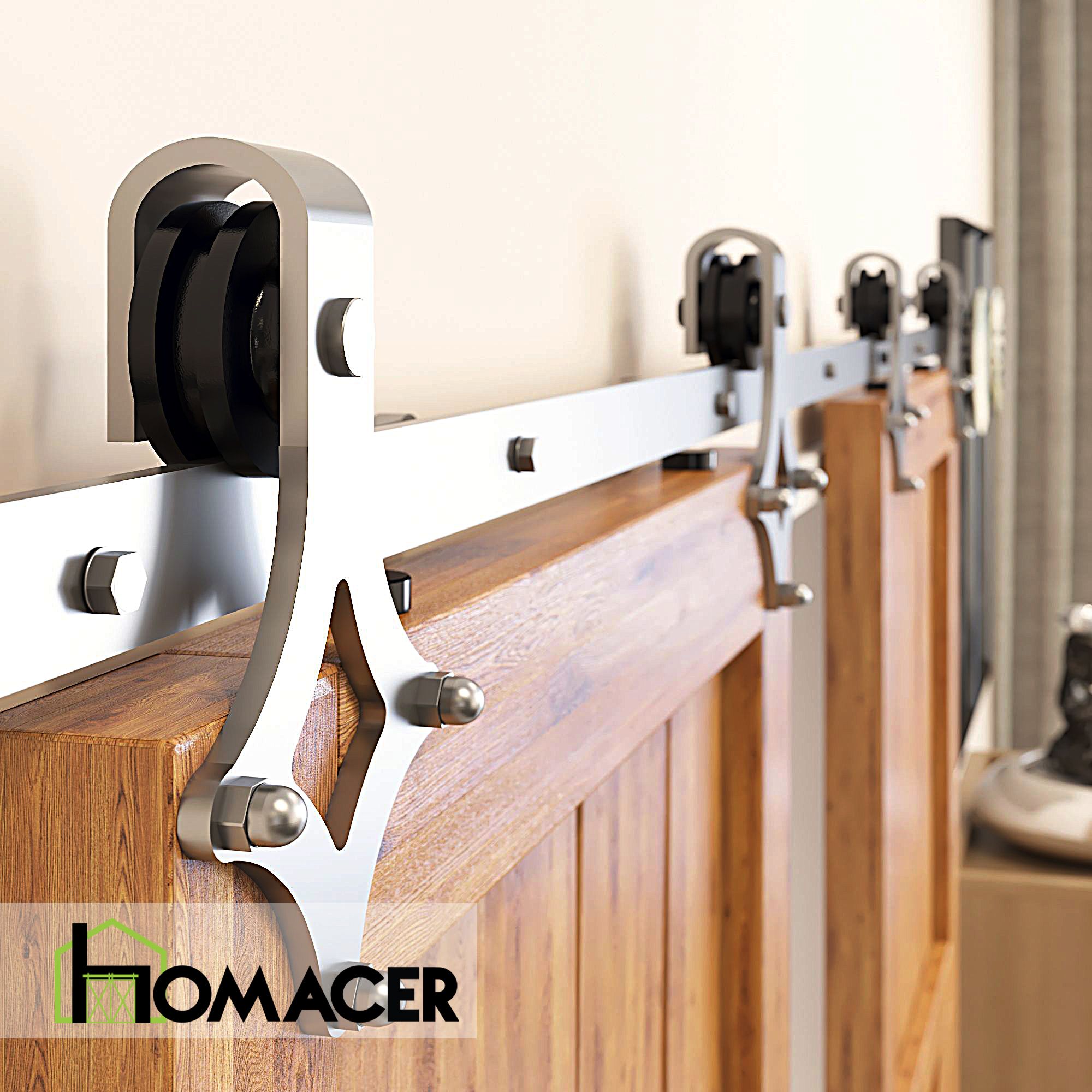

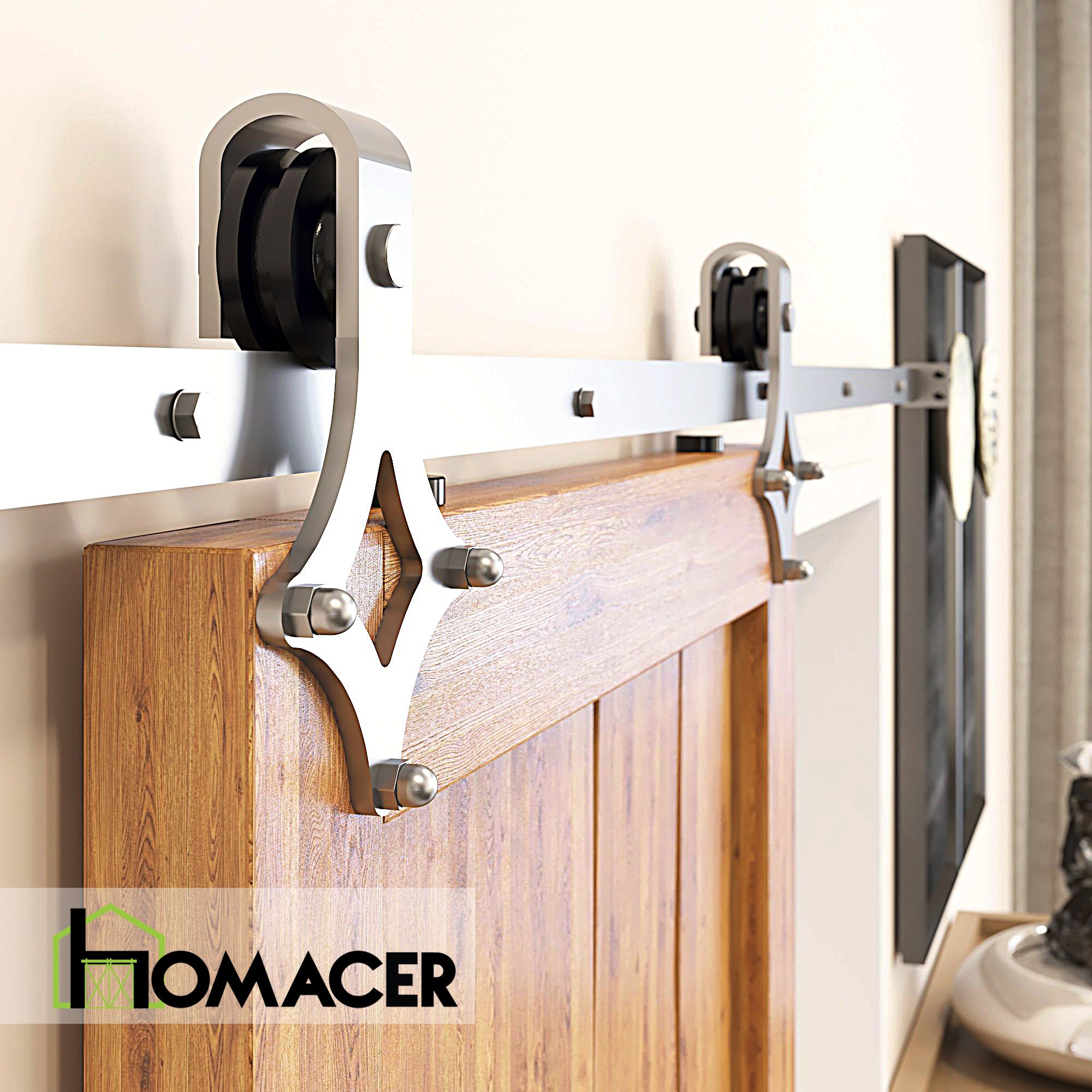

Hangers are what mounts to the door and what hangs the door from the track. It's a strap with wheels that allow smooth sliding on the track. They come in various materials, designs, and colors to match whatever aesthetic you are trying to accomplish.

Door Stopper

Coming in a set, these stoppers typically sit at the ends of the track. They prevent the door from rolling off the track. To ensure safety, door stoppers are a must for all hardware kits.

Anti-Jump Pad

Metal or plastic, these circular small parts are mounted on the top of the door to stop the door from jumping up and off the track.



Here are some things to know before making your final decision to purchase.

Header Board

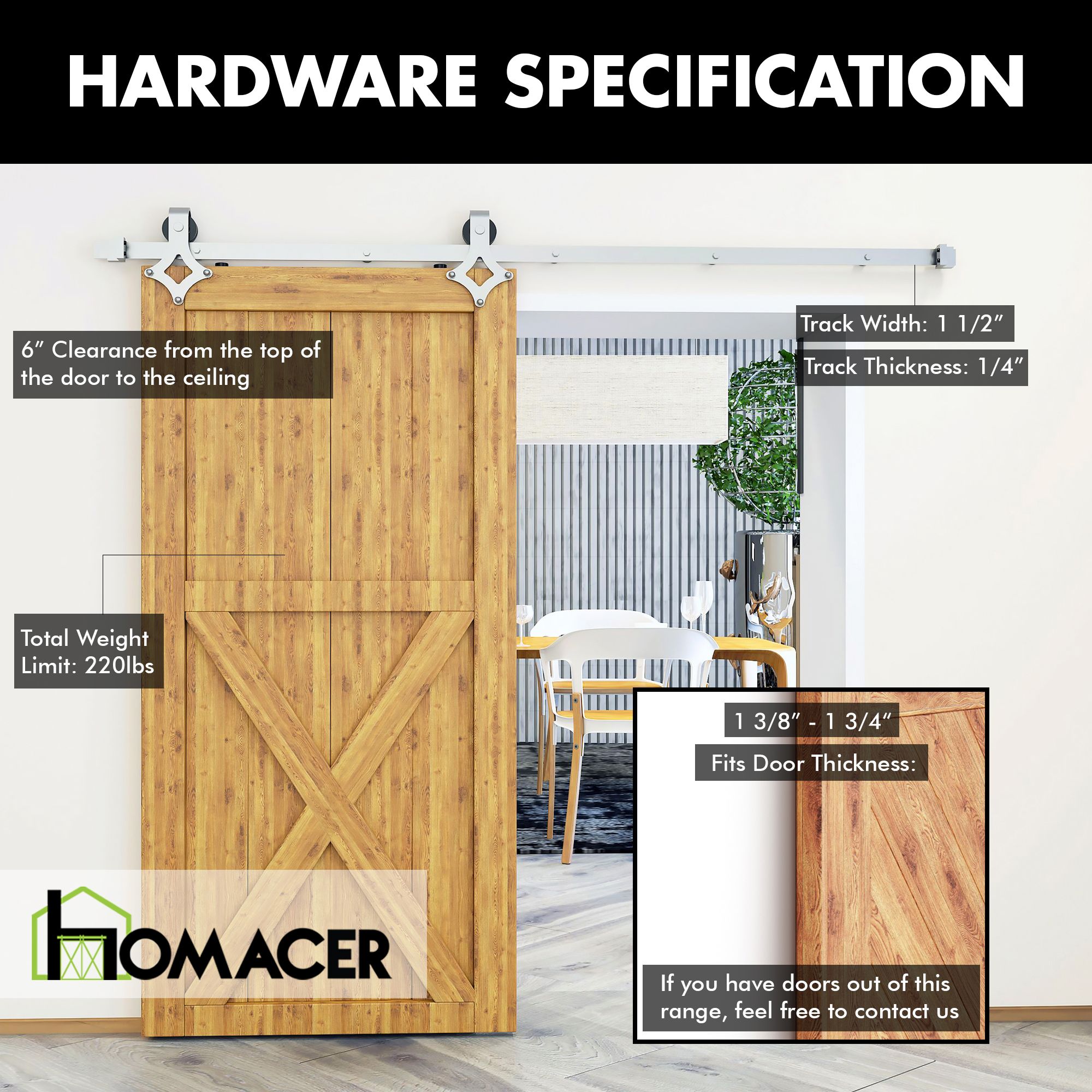

Our tracks are American Standard 16" Spacing. The longest one-piece track is 7.5ft. For tracks 8ft and above, multiple tracks are used. A Header Board is recommended for tracks 8ft and above for uneven hole spacing where tracks combine. It is also useful if your opening has trim, as it allows the track system to extend further off the wall to prevent the door from hitting the trim. Spacer extenders maybe used for trim existence too.

Door Thickness

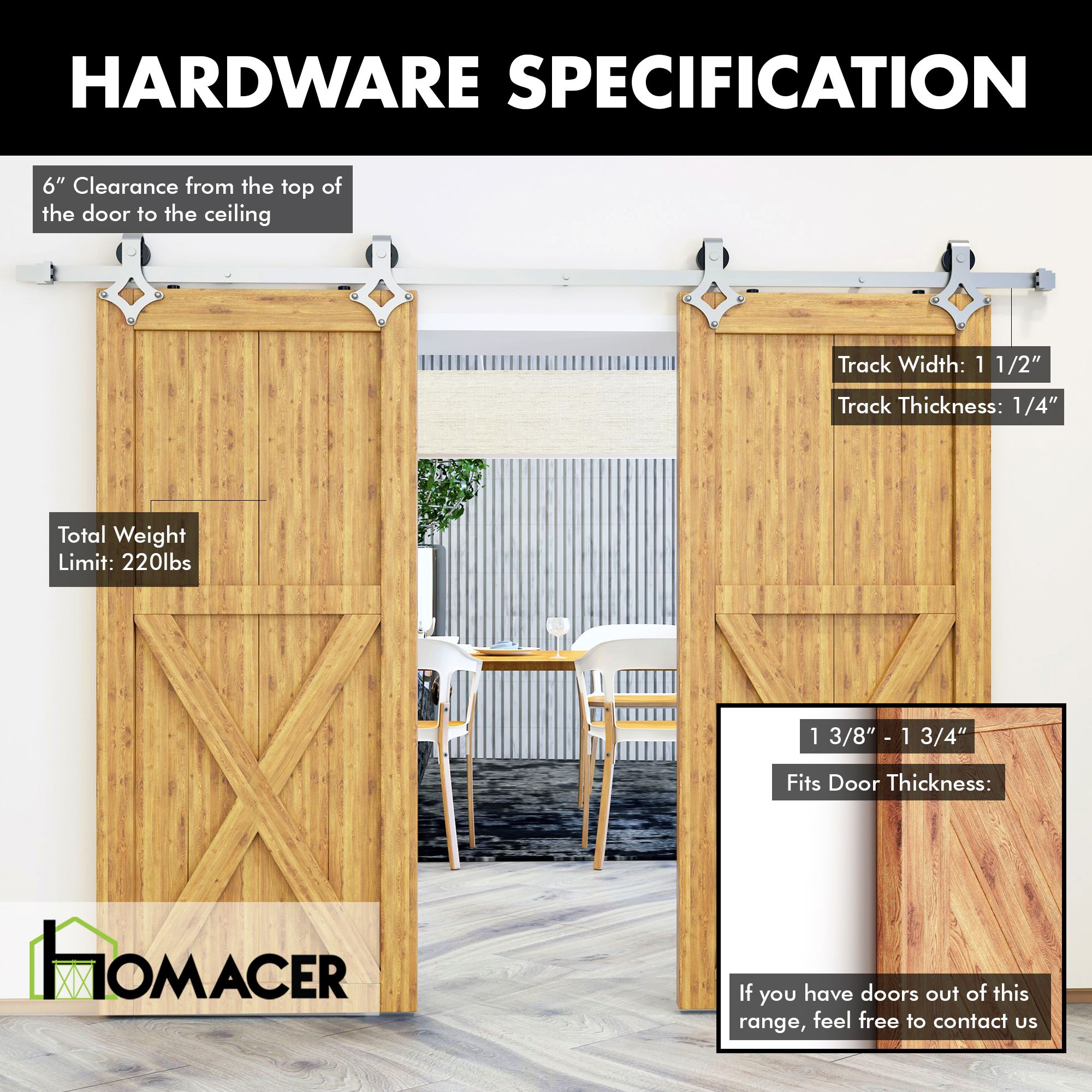

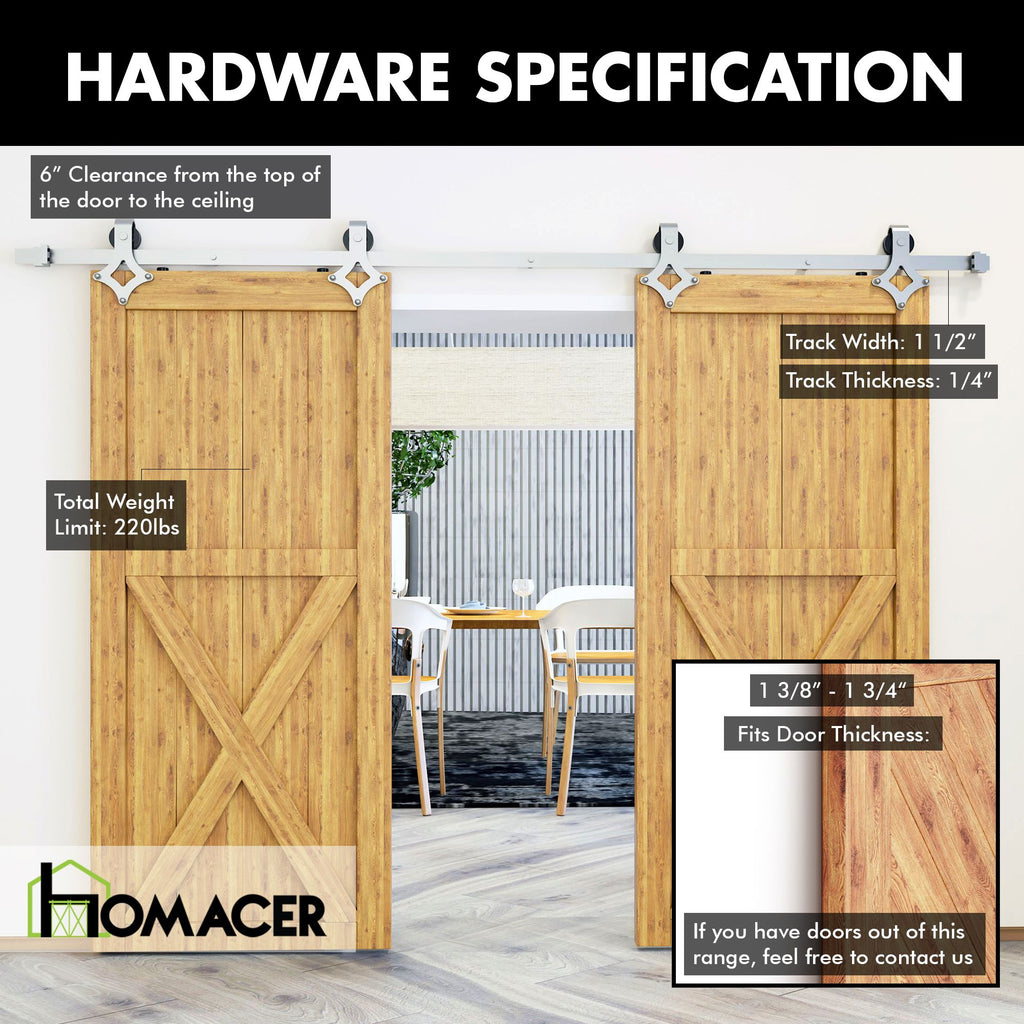

The hardware is compatible with door thickness from 1 3/8" to 1 3/4". If you have a door that falls out of this range, you can purchase shorter or longer hex bolts with the part# provided below. You will see more details about how to choose the correct length of the hex bolts for your doors on the description of the hex bolt product page.

Door Weight

All our hardware kits included the standard black nylon wheels, these wheels provide noise reduction when rolling. Each of our systems can withstand 220lbs. The metal wheels for heavier doors are recommended if the total weight of the door(s) on the system is 150lbs and above. The metal wheels are sold separately on Amazon with part# provided below.
